Trailer Series – XINGHUO GROUP

3 Axle Box Semi Trailer | Heavy Duty Enclosed Cargo Trailer

Lydia Zhang — Fri, 15 May 2026 02:55:29 +0000

FEATURES

Heavy Duty Enclosed Structure

This Box Semi Trailer adopts a heavy duty frame and enclosed body structure, providing strong loading performance and reliable durability for long-distance cargo transport. The reinforced chassis and box body are designed to handle demanding freight tasks while maintaining stable operation on different road conditions.

Stable 3-Axle Configuration

The 3-axle design improves load distribution, driving stability, and road adaptability under heavy-duty logistics conditions. Semi Trailer is suitable for high-payload freight transport, long-distance delivery, and frequent commercial operation.

Enclosed Cargo Body for Better Protection

As an Enclosed Cargo Trailer, the fully closed box-type body helps protect goods from rain, dust, sunlight, and road debris during transportation. This enclosed design is especially suitable for packaged goods, industrial products, and general cargo that require cleaner and safer transport conditions.

Flexible Box Type Semi Trailer Options

This Box Semi Trailer is available with multiple lengths and payload configurations, offering practical solutions for general cargo, packaged goods, industrial materials, and freight logistics. Different size options allow customers to choose a suitable trailer configuration according to cargo volume, loading requirements, and transport routes.

SPECIFICATIONS

Parameter	Specification
Product Model	Box Semi Trailer
Color	Customizable
Over Dimension(L×W×H)	13750×2500×4000 mm
Cargo Box Dimension (L×W×H)	13600×2450×2890 mm
GVW	40000 Kg
Payload	31500 Kg
Curb Weight	8500 Kg
Wheelbase	7,300/1,310/1,310 mm
Rear Suspension	2250/2080/2050 mm
Departure angle	12, 13, 14°
Axle	3
Axle Load	24000 Kg
Tire Specifications	11R20 12PR
Number of tires	12

The above mentioned figures are approximate.

Premium 3-Axle Heavy-Duty Cargo Trailer – Durable Detachable Panel 40 Tons Fence Semi Trailer for Bulk Freight

Yoro Yu — Tue, 12 May 2026 02:43:59 +0000

FEATURES

Flexible Modular Customization

The 40 Tons Fence Semi Trailer adopts a modular design concept, allowing tailored adjustments to dimensions and structural configurations to adapt to various cargo types and hauling scenarios, ensuring optimal versatility for diverse operational requirements.

Kyokuto original penetrated cross member structure improves impact resistance and high durability.

Efficient Quick-Dismantling Structure

Equipped with a user-friendly, quick-dismantling system, this 40 Tons Fence Semi Trailer enables fast assembly and disassembly of fence panels and posts, simplifying loading/unloading workflows and reducing downtime during logistics operations.

Robust Load-Bearing & Stable Performance

Built with a heavy-duty 3-axle setup, the 40 Tons Fence Semi Trailer delivers exceptional load capacity while maintaining balanced handling under full loads, offering reliable stability for both short-distance and long-haul transport tasks.

Durable, Low-Maintenance Construction

Crafted with precision-engineered components and anti-corrosion metal paint, this 40 Tons Fence Semi Trailer boasts excellent wear and corrosion resistance, minimizing maintenance needs and extending its service life in demanding working environments.

SPECIFICATIONS

EQUIPMENT/VEHICLE	40 Tons Fence Semi Trailer
Rated Load Capacity	34300kg
GVW	40000kg
Number of Axles	3 Axles
Over Dimension(L×W×H)	12500×2700×2700mm
Wheelbase	6680+1310+1310mm
Tire Specification	11.00R20 12PR
Number of Leaf Spring Pieces	4/8/10/12/13 Pieces

3-Axle High-Strength Corruagated Steel Box Semi Trailer | Durable and High-Capacity Cargo Transport Solution

Lydia Zhang — Fri, 08 May 2026 01:45:36 +0000

FEATURES

Durable High-Strength Steel Construction

The high-strength steel body of this steel box semi trailer provides exceptional durability and resistance to wear, making it ideal for heavy-duty transport tasks. Its robust design ensures long-lasting performance under the toughest conditions.

3-Axle Configuration for Superior Stability

Featuring a 3-axle design, this steel box semi trailer offers enhanced weight distribution and improved stability, ensuring safe and efficient transport of large and heavy loads, even over long distances.

High-Capacity Cargo Space

With a spacious cargo area, this semi trailer is built to carry a variety of heavy and bulky items, making it a perfect solution for businesses requiring high-capacity transport for large-scale operations.

Optimized for Heavy-Duty Transport

Designed to handle the toughest loads, this heavy-duty box trailer is built for industries that need reliable and efficient transport solutions for oversized or high-weight cargo, such as construction and logistics.

Low Maintenance and Long-Term Value

The high-strength steel structure and durable materials reduce maintenance costs and ensure that the 3-axle steel box semi trailer remains in excellent condition over time, offering exceptional value for businesses in need of a reliable transport solution.

SPECIFICATIONS

Parameter	Specification
Product Model	High Strength Corrugated Steel Box Semi Trailer
Color	Customizable
Over Dimension(L×W×H)	13750×2500×4000 mm
Cargo Box Dimension (L×W×H)	13600×2450×2890 mm
GVW	40000 Kg
Payload	31500 Kg
Curb Weight	8500 Kg
Wheelbase	7,300/1,310/1,310 mm
Rear Suspension	2250/2080/2050 mm
Departure angle	12, 13, 14°
Axle	3
Axle Load	24000 Kg
Tire Specifications	11R20 12PR
Number of tires	12

The above mentioned figures are approximate.

2 Axle Steel Flatbed Box Semi-Trailer with Great Spacious

Emma Zhang — Thu, 07 May 2026 08:16:16 +0000

FEATURES

1. Frameless corrugated steel body

The Steel Flatbed Box Semi-Trailer is made of high-strength cold-rolled corrugated steel plates, featuring a frameless structure that maximizes cargo space. The roof of this van truck can be of closed type, sliding open type, open type, or tarp-bow type with an opening, while the sides can be wing-open type or curtain-side type, allowing for easy operation and meeting users’ diverse and personalized requirements.

2. Reliable high-quality steel build

The Steel Flatbed Box Semi-Trailer is manufactured from high-quality steel, utilizing advanced technology and strict production processes. The complete vehicle of this cargo van boasts a rational structure, reliable performance, easy handling, and an attractive appearance.

3. Top-brand global components

The components of Semi-Trailer are sourced from well-known domestic and international manufacturers. They are strictly procured, inspected, and used in accordance with the requirements of the quality system documentation, ensuring the excellent performance of the complete cargo van.

SPECIFICATIONS

PRODUCT MODEL	Steel Flatbed Box Semi-Trailer
Color	Customizable
GVW(Kg)	40000
Payload(Kg)	33100
Wheel Base / Dimension (mm)	7200+1310+1310 / 13000×2550×3800
Curb Weight	6900

The above mentioned figures are approximate.

Heavy-Duty 3-Axle Side Curtain Semi Trailer | Efficient and Lightweight Cargo Transport

Lydia Zhang — Thu, 07 May 2026 08:14:10 +0000

FEATURES

Efficient Loading and Unloading

The semi-trailer design allows for easy access to both sides and the rear, making it incredibly efficient for loading and unloading goods. This feature helps save time and improve workflow, especially in busy logistics operations.

High-Capacity Transport

Designed for heavy-duty use, this high-capacity box trailer provides ample space for bulk cargo. Its sturdy construction and 3-axle semi trailer configuration ensure that even the heaviest loads are transported safely and securely, maximizing your business’s operational efficiency.

Lightweight and Durable

The lightweight side curtain trailer utilizes advanced materials, such as high-strength steel and specialized curtain fabric, to reduce overall weight while maintaining strength. This allows for increased cargo capacity without sacrificing durability or stability.

Versatile Design for Multiple Applications

The heavy-duty box trailer is versatile enough to handle a wide variety of cargo types, including construction materials, machinery, and large equipment. Its adaptable design makes it perfect for industries ranging from logistics to manufacturing, offering the flexibility you need for diverse hauling needs.

Superior Stability and Safety

Built with a 3-axle semi trailer configuration, this trailer offers optimal weight distribution, ensuring better handling and improved safety during transport. The side curtain semi trailer’s design, combined with its robust undercarriage and reflective safety strips, makes it a reliable choice for long-haul journeys.

SPECIFICATIONS

Parameter	Specification
Product Model	Side Curtain Semi Trailer
Color	Customizable
Over Dimension(L×W×H)	13750 × 2550 × 4000 mm
Cargo Box Dimension (L×W×H)	13600 × 2470 × 2600 mm
GVW	40,000 kg
Payload	32,150 kg
Curb Weight	8500 kg
Wheelbase	7,300/1,310/1,310 mm
Rear Suspension	2250, 2080, 2050 mm
Departure angle	12, 13, 14°
Axle	3
Axle Load	24,000 kg
Tire Specifications	12R22.5 12PR
Number of tires	12

The above mentioned figures are approximate.

Good Quality 3 Axle Glass Fiber Semi-Trailer – China Factory

Emma Zhang — Thu, 07 May 2026 03:09:07 +0000

FEATURES

1. High strength

The sandwich structure of Semi-Trailer follows the stress principles of an I-beam, concentrating high-strength materials on the upper and lower face sheets. The core layer increases the section height, thereby enhancing the component’s load-bearing capacity and compensating for the low modulus of elasticity of fiberglass.

2. Good thermal and acoustic insulation properties

This makes the Glass Fiber Semi Trailer ideal for transporting temperature-sensitive goods like dairy or chemicals.

3. Good structural integrity

Because the core layer and face sheets are continuous, the resulting fiberglass product of the Glass Fiber Semi Trailer achieves uniform stress distribution and high structural integrity, thus improving seismic and fatigue resistance.

SPECIFICATIONS

PRODUCT MODEL	Glass Fiber Semi-Trailer
Color	Customizable
GVW(Kg)	40000
Payload(Kg)	31900
Wheel Base / Dimension (mm)	6980+1310+1310 / 13680×2550×3800
Curb Weight (kg)	8100

The above mentioned figures are approximate.

Reliable Quality 3-Axle 85CBM Wing Opening Semi Trailer – Ultimate Loading Flexibility for Dry Van & Cargo Transport

Lydia Zhang — Thu, 07 May 2026 01:47:08 +0000

FEATURES

Dual Wing Opening Design

The 85CBM Wing Opening Semi Trailer features side-opening wings on both sides, allowing quick and complete access to the cargo area. This design helps improve loading efficiency, especially for palletized goods, packaged cargo, and warehouse distribution.

Robust & High-Capacity Construction

Built with high-strength materials, this trailer supports heavy loads while maintaining structural integrity during long-distance transport. The reinforced frame is designed for demanding freight operations and frequent commercial use.

3-Axle Stability

Equipped with a 3-axle configuration, the semi trailer ensures balanced weight distribution and superior stability, making it safe and dependable even when transporting bulky or oversized cargo.

Spacious 85CBM Cargo Volume

With a generous cargo box volume of 85CBM, the wing opening semi trailer accommodates large shipments and palletized goods, maximizing transport efficiency and operational productivity.

Versatile Logistics Solution

Ideal for dry van and cargo transport, this Wing Opening Semi Trailer is suitable for a wide range of industries, offering a flexible and reliable solution for various freight operations.

SPECIFICATIONS

Parameter	Specification
PRODUCT MODEL	Wing opening Semi trailer
Color	Customizable
Over Dimension(L×W×H)	13750 × 2550 × 4000 mm
Cargo Box Dimension (L×W×H)	13600 × 2470 × 2600 mm
GVW	40,000 kg
Payload	32,150 kg
Curb Weight	8500 kg
Wheelbase	7,300/1,310/1,310 mm
Rear Suspension	2250, 2080, 2050 mm
Departure angle	12, 13, 14°
Axle	3
Axle Load	24,000 kg
Tire Specifications	12R22.5 12PR
Number of tires	12

The above mentioned figures are approximate.

3-Axle 60T Low Bed Semi Trailer | Hydraulic Ramps | Heavy Equipment Transport Trailer for Sale

Lydia Zhang — Fri, 24 Apr 2026 02:23:52 +0000

FEATURES

1. Heavy-Duty Load Capacity

60-ton rated load capacity for heavy construction machinery/overweight cargo
Reinforced Q345B high-strength steel main beam with anti-twist frame design
4-6mm non-slip checkered steel floor + dense heavy-duty crossbeams
60T low bed semi trailer features ultra-low deck height (800-1000mm) for low center of gravity & stable transport

2. Chassis & Safety System

3-axle heavy-duty configuration (international standard axle model) for low bed semi trailer
Dual-line air brake + ABS/EBS, compliant with global safety regulations
12.00R20 wear-resistant heavy-duty tires with reinforced wheel hubs
2″/3.5″ universal kingpin, compatible with all mainstream tractors
High-brightness warning lights + reflective strips for all-weather safety

3. Loading & Operation Convenience

Hydraulic folding ramps (standard) for self-drive loading/unloading (excavator/ bulldozer/crane)
Multiple heavy-duty lashing points for secure cargo fastening
Hydraulic heavy-duty landing legs for stable parking/loading
Heavy duty semi trailer features two-way easy operation, no additional lifting equipment required

4. Basic Customization

Customizable deck length/width for oversized cargo needs
Optional air suspension (for better shock absorption)
Customizable body color + logo printing
Optional galvanized coating for enhanced corrosion resistance

SPECIFICATIONS

Parameter	Specification
Axle Configuration	2/3/4/5 Axles (Customizable)
Load Capacity	40T – 150T (Based on Axle Number)
Main Beam Material	Q345B / T700 High-Strength Steel
Deck Height	800mm – 1200mm (Ultra-Low Design)
Floor Material	4mm – 6mm Non-Slip Checkered Steel Plate
Suspension	Leaf Spring / Air Suspension (With Axle Lifting Optional)
Loading Ramps	Hydraulic Folding / Manual Heavy-Duty Ramps
Braking System	Air Brake + ABS / EBS (Dual Control)
Kingpin	2″/ 3.5″ (Optional, All Major Tractors)
Surface Treatment	Anti-Rust Paint / Powder Coating (50% Higher Adhesion)
Tire Size	12.00R20 / 11.00-20 (Wear-Resistant & Heavy-Duty)

The above mentioned figures are approximate.

14m Livestock Transport Trailer 3Axles Multi-Deck Aluminum Animal Transport Manufacturer for Farm Lambs, Sheep, RuminantsTransportation

Vivian Zhang — Tue, 17 Mar 2026 03:48:22 +0000

FEATURES

1. Multi-Deck Structure

The 14m Livestock Transport Trailer is designed with a multi-layer layout to maximize loading capacity within legal height limits, ideal for large-scale pig transport and long-distance logistics.

2. Advanced Ventilation System

The 14m Livestock Transport Trailer is equipped with natural or forced ventilation to ensure continuous airflow, reducing heat stress and improving animal welfare during transport.

3. High Strength Body Structure

The 14m Livestock Transport Trailer is constructed from aluminum alloy or high-quality carbon steel, offering enhanced durability and corrosion resistance for long service life in harsh conditions.

4. Easy Cleaning & Drainage System

The Animal Transport Trailer features built-in manure drainage and high-pressure cleaning compatibility, ensuring quick, thorough cleaning and meeting modern livestock hygiene standards.

5. Anti-slip Flooring

Special anti-slip floor design minimizes the risk of slipping and injury during transit. Provides safer standing conditions for animals.

SPECIFICATIONS

BASIC INFORMATION
Product Model	14m livestock transport trailer
Overall Dimension (mm)	12940×2535×3995
GVW (kg)	40000
Payload (kg)	28950
Curb Weight (kg)	11050
Wheelbase (mm)	6150+1350+1350
Tire Size	275/70R22.5 16PR

The above mentioned figures are approximate.

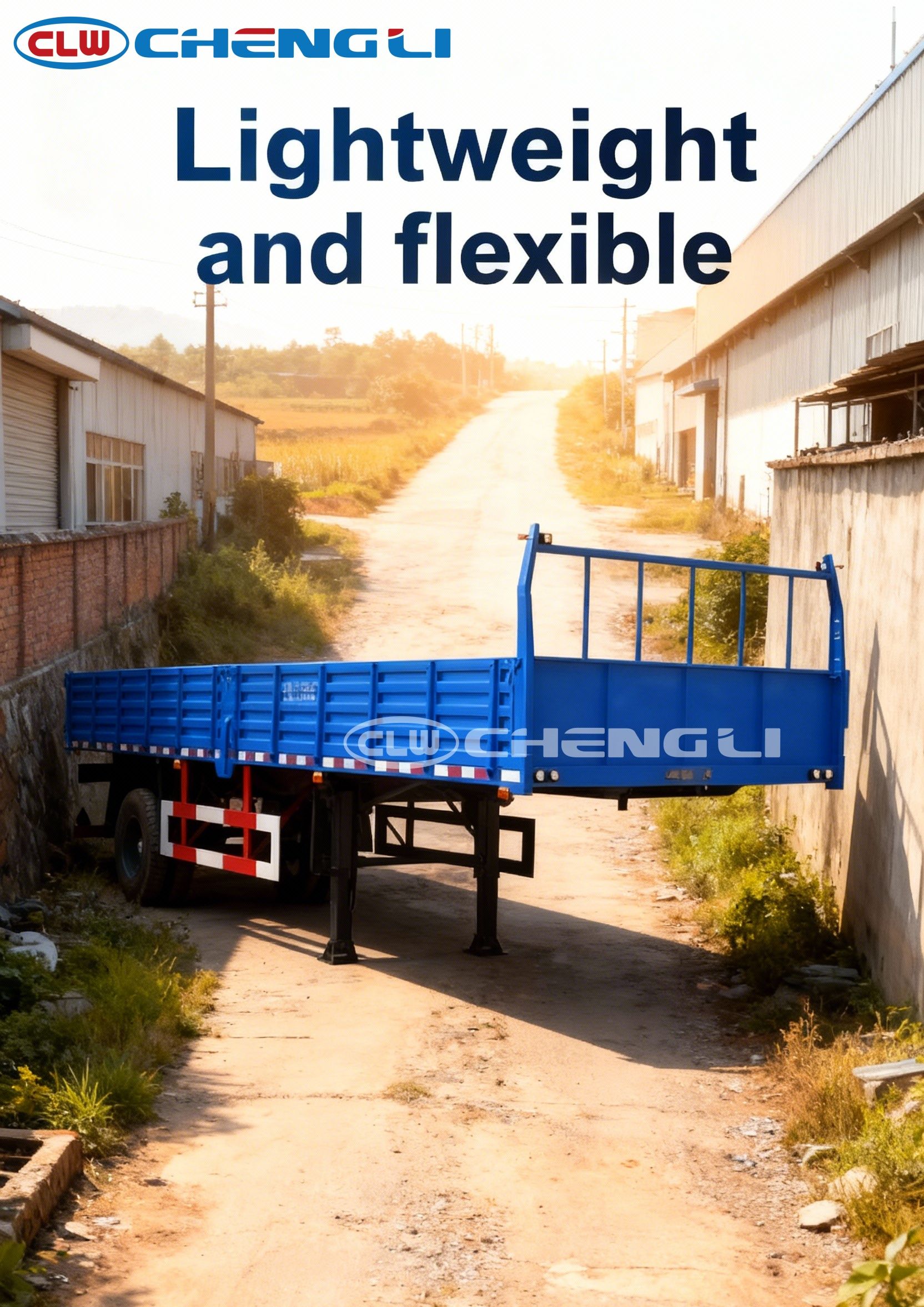

Ultimate Xinghuo9130 8.5m Single Axle 10-Ton Bulk Cargo Transport Semi Trailer

Leo Li — Fri, 27 Feb 2026 08:38:56 +0000

FEATURES

10-Ton Rated Payload Capacity

This Bulk Cargo Transport Semi Trailer features a maximum total mass of 12,850 kg with a rated load capacity of 10,000 kg. Carry more bulk cargo per trip to maximize logistics efficiency and reduce transportation costs.

Spacious 8.25m Cargo Body

This 10-ton bulk cargo transport semi trailer equipped with a large cargo compartment measuring 8250×2300×550mm, provides ample space for various bulk materials, including construction supplies, agricultural products, and industrial goods

Durable Q235 Steel Construction

Built with high-strength Q235 carbon steel for the frame and protective materials, this Bulk Cargo Transport Semi Trailer ensures long-lasting durability. All side and rear protection are welded for maximum structural integrity.

Reliable ABS Braking System

Equipped with an advanced HNABS-4S/2M anti-lock braking system from, this Bulk Cargo Transport Semi Trailer ensures safe and stable operation even under full load conditions

SPECIFICATIONS

Parameter	Details
Vehicle Model	Xinghuo9130
Product Name	Semi Trailer
Configuration	Single Axle Semi-trailer
Total Mass	12,850 kg
Rated Load Capacity	10,000 kg (10 Tons)
Curb Weight	2,850 kg
Overall Dimensions	8450×2500×2520 mm
Cargo Body Dimensions	8250×2300×550 mm
Axle Configuration	1 axle
Wheelbase	5,900 mm
Rear Track Width	1,840 mm
Suspension	-/10 leaf springs
Tire Specifications	9.00-20 12PR, 9.00-20 14PR, 9.00R20 10PR, 9.00R20 12PR, 9.00R20 14PR
Tire Quantity	4
ABS System	HNABS-4S/2M (Liangshan Haina Electronics)
Protection Material	Q235 Carbon Steel
Rear Protection Section	130×50 mm
Rear Protection Ground Clearance	500 mm
Saddle Loading Capacity	5,330 kg
Axle Load	-/7,520 kg
Approach/Departure Angle	-/20°
Front/Rear Overhang	-/1,750 mm

The above mentioned figures are approximate.
